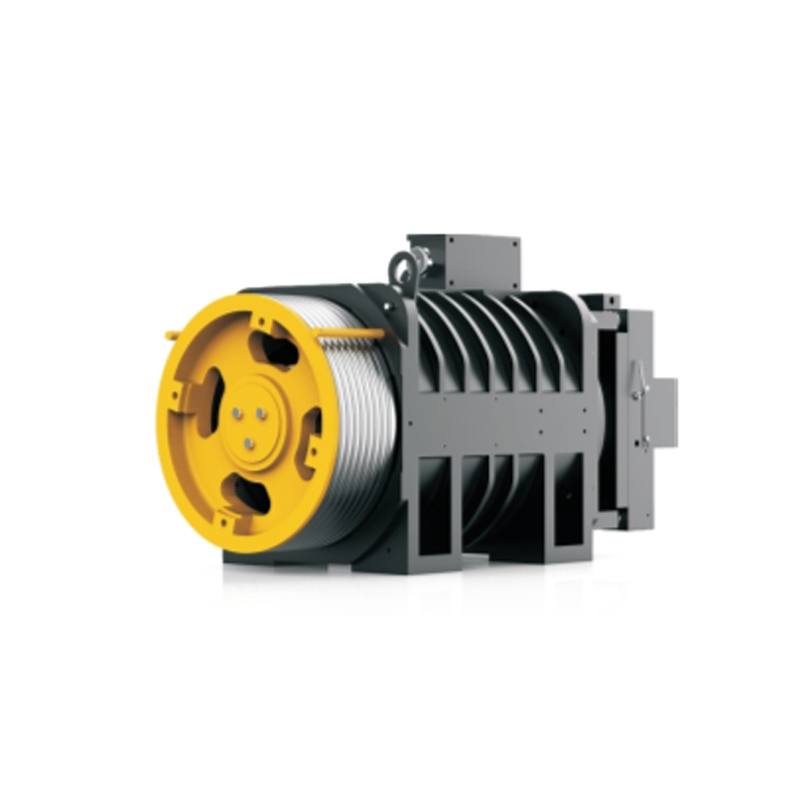

DC110V Brake Gearless Traction Machine Elevator Replacement Parts

تصویر بزرگ : DC110V Brake Gearless Traction Machine Elevator Replacement Parts

جزئیات محصول:

محل منبع:	چین
نام تجاری:	SUNNY
گواهی:	CE
شماره مدل:	SN-GETM3.2DS

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	$500~1200
جزئیات بسته بندی:	جعبه چوبی
زمان تحویل:	7 تا 15 روز
شرایط پرداخت:	Western Union، T/T، L/C، Paypal
قابلیت ارائه:	5000 عدد در ماه

مخاطب

توضیحات محصول جزئیات

INS.Class:	155 (F)	نام محصول:	دستگاه کشش بدون دنده
مدل:	دستگاه کشش بدون دنده	نوع:	دستگاه کشش بدون دنده
ولتاژ:	380 ولت	تعلیق:	2: 1
ترمز:	DC110V	وزن:	260 کیلوگرم
حداکثر بار استاتیک:	3200/3500 کیلوگرم
برجسته کردن:	DC110V gearless traction elevator motor,brake gearless elevator replacement parts,traction machine for elevator spare parts , brake gearless elevator replacement parts , traction machine for elevator spare parts

DC110V Brake Gearless Traction Machine Elevator Replacement Parts

Traction Ratio	Load (kg)	Elevator Speed (m/s)	Rated speed (r/min)	Rated torque (N.m)	Motor					Brake		Sheave
Traction Ratio	Load (kg)	Elevator Speed (m/s)	Rated speed (r/min)	Rated torque (N.m)	Power (kw)	Voltage (V)	Current (A)	Poles (P)	Frequency (Hz)	Current (A)	Voltage (V)	Diameter (mm)	Rope nxd	Goove pitche (mm)
2:1	630	1.0	119	329	4.1	340	10	20	19.8	≤2x1.5	DC110	320	≤8xΦ8	12
		1.5	179	337	6.3		15		29.8
		1.75	209	337	7.4		17		34.8
		2	239	337	8.4		2		39.8
2:1	800	1	119	401	5	340	13		19.8	≤2x1.5	DC110	320	≤8xΦ8	12
		1.5	179	401	7.5		18		29.8
		1.75	209	428	9.3		22		34.8
		2	239	428	10.7		27		39.8
2:1	1000	1	119	482	6	340	15	20	19.8	≤2x1.5	DC110	320	≤8xΦ8	12
		1.5	179	482	9		22		29.8
		1.75	209	534	11.7		28		34.8
		2	239	534	13.4		32		39.8
2:1	1050	1	119	506	6.3	340	16	20	19.8	≤2x1.5	DC110	320	≤8xΦ8	12
		1.5	179	506	9.5		23		29.8
		1.75	209	561	12.3		30		34.8
		2	239	561	14		34		39.8
2:1	1150	1	119	615	7.7	340	20	20	19.8	≤2x1.5	≤2x1.5	320	≤8xΦ8	12
		1.5	179	615	11.5		27		29.8
		1.75	209	615	13.5		30		34.8
		2	239	615	15.4		37		39.8

DC110V Brake Gearless Traction Machine Elevator Replacement Parts 0

DC110V Brake Gearless Traction Machine Elevator Replacement Parts 1

DC110V Brake Gearless Traction Machine Elevator Replacement Parts 2

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
