1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

گواهی
چین SHANGHAI SUNNY ELEVATOR CO.,LTD گواهینامه ها
چین SHANGHAI SUNNY ELEVATOR CO.,LTD گواهینامه ها
با آمدن سال جدید ، آرزو می کنم این شرکت مقیاس خود را گسترش دهد ، تجارت خود را توسعه دهد ، تجارت خود را توسعه دهد و منابع مالی خود را گسترش دهد.

—— ملیا

اصرار بر مدیریت کیفیت محصول ، ایجاد مکانیزم موثر و طولانی مدت برای کیفیت.

—— یولی

چت IM آنلاین در حال حاضر

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

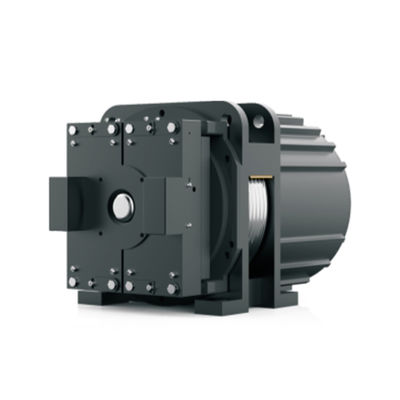

تصویر بزرگ :  1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

جزئیات محصول:
محل منبع: چین
نام تجاری: SUNNY
گواهی: CE
شماره مدل: SN-GETM2.5DS
پرداخت:
مقدار حداقل تعداد سفارش: 1
قیمت: $500~1200
جزئیات بسته بندی: جعبه چوبی
زمان تحویل: 7 تا 15 روز
شرایط پرداخت: Western Union، T/T، L/C، Paypal
قابلیت ارائه: 5000 عدد در ماه
توضیحات محصول جزئیات
بار ایستا: 3000 کیلوگرم INS.Class: 155 (F)
حجم ترمز: DC110V بسامد: 50 هرتز
طناب زدن: 2: 1 نام محصول: موتور بدون دنده آسانسور
مدل: موتور بدون دنده آسانسور نوع: موتور بدون دنده آسانسور
بار: 630 کیلوگرم سرعت: 1.0 تا 1.75 متر بر ثانیه
برجسته کردن:

gearless elevator motor,1.0~1.75m/s elevator motor,elevator spare parts motor

,

1.0~1.75m/s elevator motor

,

elevator spare parts motor

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts

Product Parameters



Roping

Load

(kg)



Speed

(m/s)



Rated speed(r/min) Rated Torque(N.m) Motor Sheave Brake

Power

(kw)

Voltage(V) Current(A) Poles

Frequency

(Hz)

Diameter(mm) Rope(n) Groove pitch(mm) Current(A) Voltage(V)
2:1 630 1 119 329 4.1 340 10 20 19.8 320 ≤5x∅8 12 ≤2x1.5 DC 110V
1.5 179 337 6.3 15 29.8
1.75 209 337 7.4 17 34.8





1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 0

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 1

1.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 21.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 31.0~1.75m/S Speed Elevator Gearless Motor For Quality Elevator Parts 4
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
